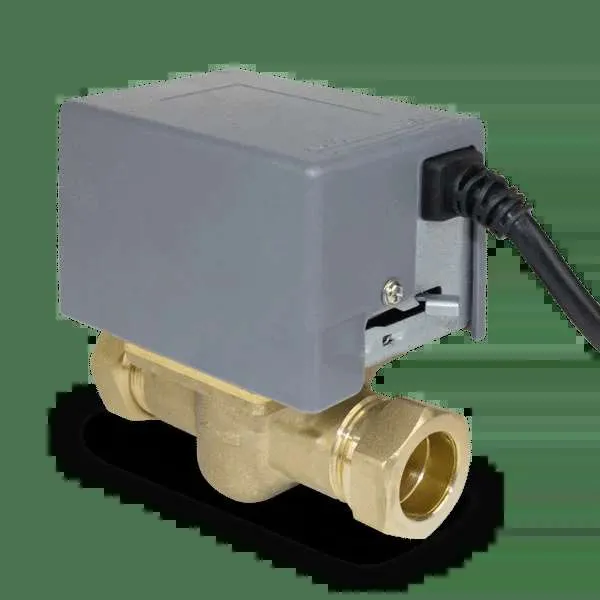

PMV22 2 Port Motorised Zone Valve

PMV22 2 Port Motorised Zone Valve

The electrically operated zone valve is designed to control the flow of water in a central heating system. The body is made of brass, on which an actuator with a return spring and a limit switch is mounted. It is possible to open the valve manually and lock it. The actuator is made in the NC version (closed currentless device).

Characteristics

✔ Industry colour coded wiring with 1m cable
✔ Detachable head
✔ Standard hydraulic and electrical connections
✔ Suitable for heating and cooling installations
✔ Removable actuator housing
✔ Standard wiring Compatible with Honeywell bodies
✔ 5 year warranty

Power	2 Port Motorised Valve
Power Consumption	6W
Output	NO/COM
Liquid Temperature Range	5°C - 88°C
Max. Static Pressure	8.6 Bar
Differential Pressure	1” – 0.8 bar ¾” – 0.6 bar
Protection class	IP20
Max. Load	3A
Dimensions (mm)	87 x 55 x 60
