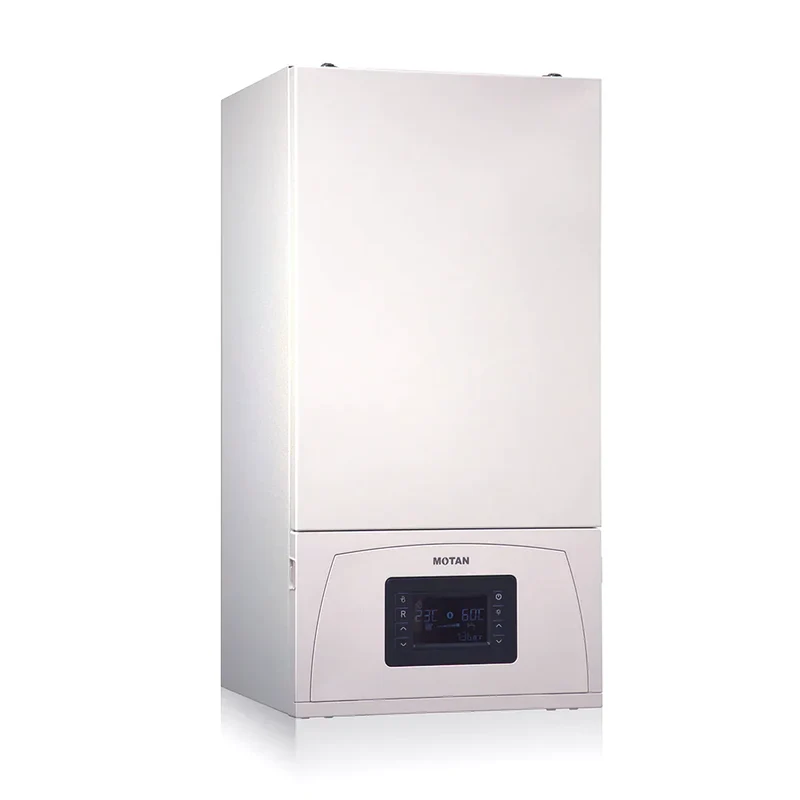

Motan Condens 100 70kW CH2 Condensing Wall Hung Gas Boiler

• Condensation boiler, specially designed for heating;
• High efficiency up to 104.2% and 1: 7 modulation ratio;
• Environmentally friendly. Significantly reduced amounts of NOx, CO and CO2 - NOx Class 5;
• Designed and built for maximum efficiency and economy in operation according to the latest European legislative requirements - low energy pump;
• Cascade installation available;
• Energy efficiency ★★★★ (dir. 92/42 / EEC);
• Stainless steel main heat exchanger;
• Control panel with LCD that ensures an advanced graphical interface.

Technical specifications

Product type	Condensation
Energy efficiency (Directive 92/42 / EEC)	★★★★
Draught	forced, variable speed fan
Reference gas	G20
Nox Class	5
Seasonal energy efficiency class for indoor heating	A
Maximum rated power (80 / 60ºC) (G20-I2H)	69 kW
Maximum rated power (50 / 30ºC - condensation) (G20-I2H)	72 kW
Thermal efficiency at rated calorific value (80 / 60ºC)	97.1%
Maximum supply pressure - recommended value	35 mbar
Thermal efficiency at nominal calorific value (50 / 30ºC - condensation)	104.2%
Gas supply pressure	G20 - 20 mbar
