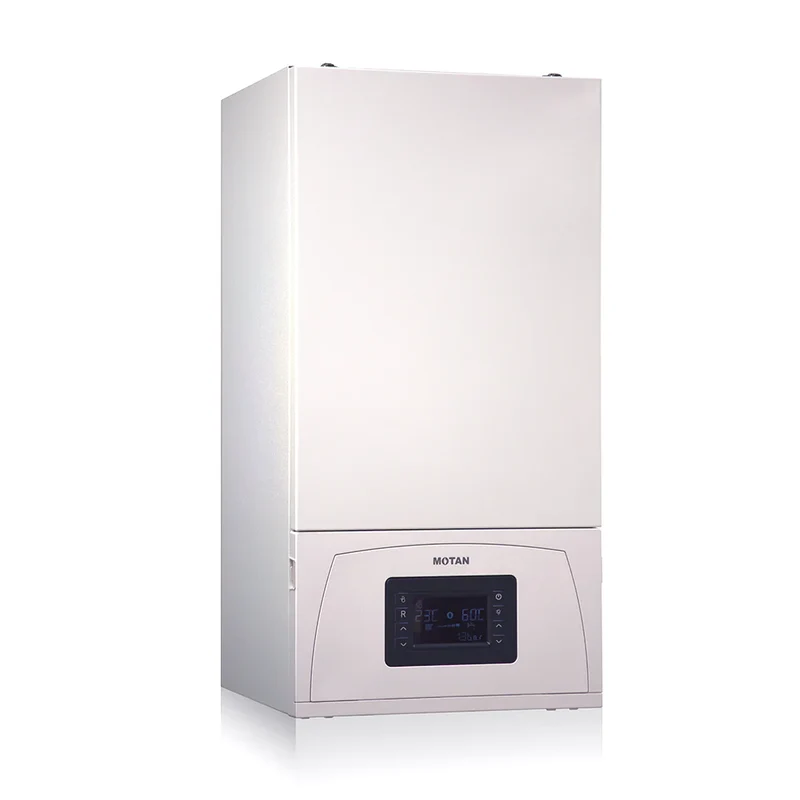

Motan Condens 100 45kW CH2 Condensing Wall Hung Gas Boiler

• Condensation wall hung water boiler, specially designed for indoor heating;
• Up to 106% efficiency and 1: 9 modulation ratio;
• Environmentally friendly - significantly reduced emissions of NOx, CO and CO2 - Class NOx 5;
• Designed and built for maximum efficiency and economically efficient operation according to the latest European legislative requirements - low energy pump;
• Cascading possibility;
• Energy efficiency ★★★★ (dir. 92/42 / EEC);
• Control panel with LCD and advanced graphical interface.

Technical specifications

Product type	Condensation
Energy efficiency (Directive 92/42 / EEC)	★★★★
Draught	forced, variable speed fan
Reference gas	G20-I2H
Nox Class	5
Seasonal energy efficiency class for indoor heating	A
Maximum rated power (80 / 60ºC) (G20-I2H)	45 kW
Maximum rated power (50 / 30ºC - condensation) (G20-I2H)	50 kW
Thermal efficiency at rated calorific value (80 / 60ºC)	97%
Thermal efficiency at nominal calorific value (50 / 30ºC - condensation)	106%
Gas supply pressure	G20 - 20 mbar
