Cool Energy 10 Tube CPC Solar Thermal Kit CE-STXKIT10

Key Features: CE-STXKIT10

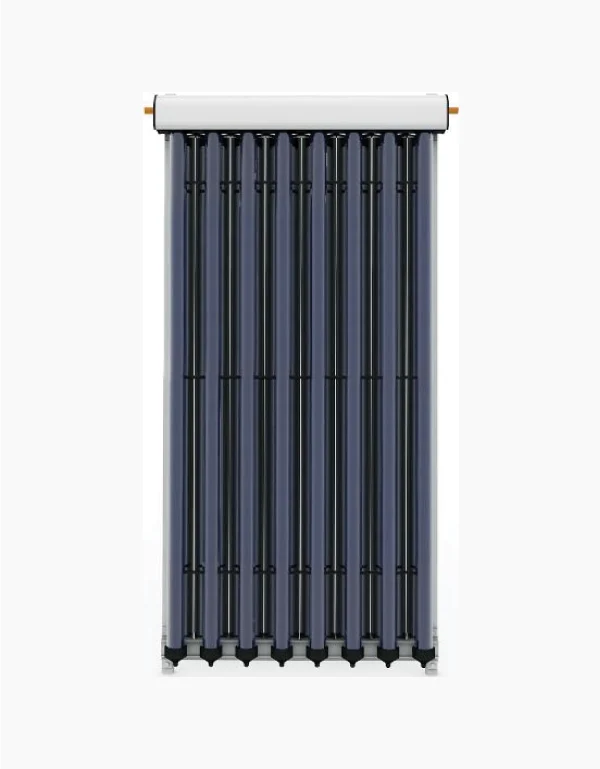

The product image shows an 8-tube solar collector, which is provided for illustrative purposes only. We offer 10-tube and 24-tube solar collectors designed for optimal performance and efficiency.

Overheating protection, higher power output suitable for installations with limited space, and applicable for industrial heating.

Power Output:

• 1189W
• Up To 160 L Per Day

FAST ASSEMBLY CPC HEAT PIPE COLLECTOR:

• Sunlight concentrators double efficiency for faster heating.
• Quick-assembly CPC concentrators allow easier installation and transportation.
• 360° sunlight absorption provides hot water, even on cloudy days.
• Overheating protection: simply remove the CPC concentrators in summer.
• Faster startup temperature than standard solar thermal collectors.
• Ideal for industrial heating applications.
• Higher thermal output from the same aperture area.
• Certified to EN12975/Solar Keymark standards.

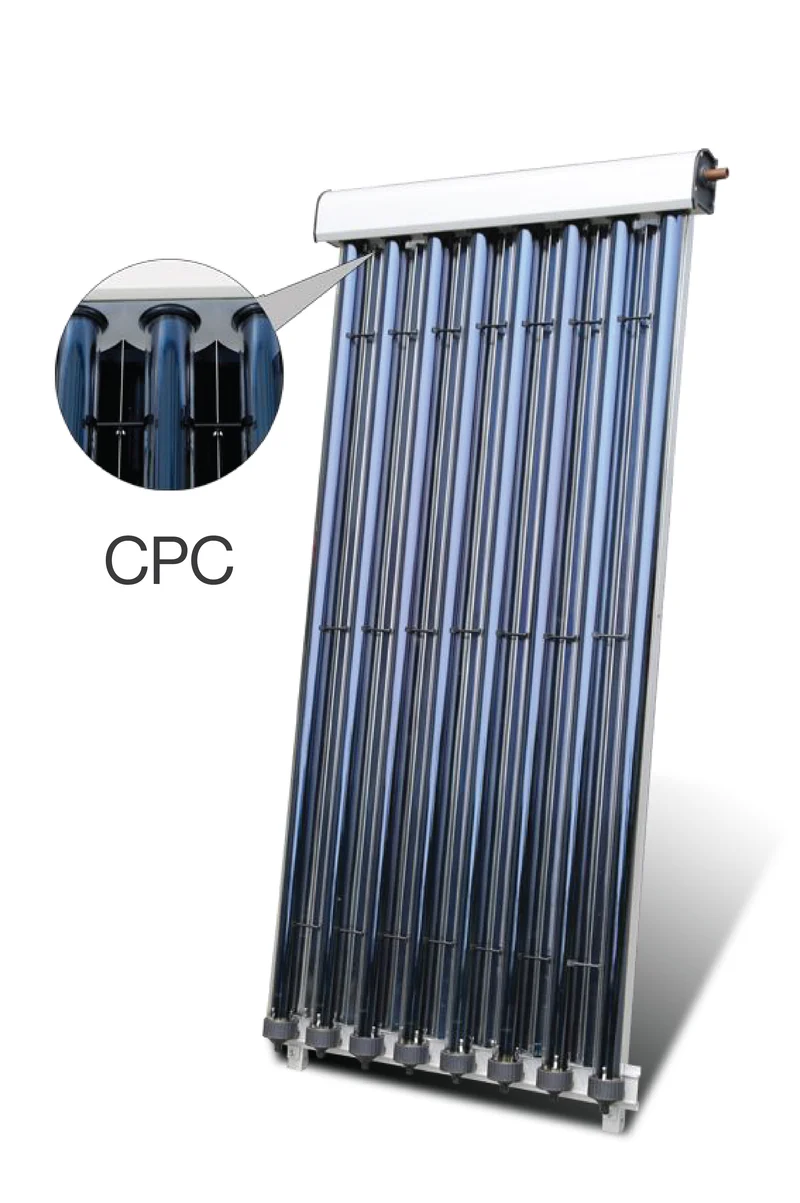

CPC REFLECTOR

Delivers maximum performance in minimal space. The absorber is larger than the overall surface area, with a 360° three-dimensional design that maximizes energy collection. It efficiently captures both diffuse and direct sunlight from morning to evening.

Power output is 50% higher than standard solar collectors, delivering the same energy output in a smaller installation area.

Patented fast assembly CPC, flaky sheet, more convenient for installation and transportation.

FULL KIT INCLUDES:

• Cool Energy 10 Tube CPC Solar Thermal Collector
• 1 x Solar Controller
• 1 x Solar Pump Station
• 1 x 10m Roll DN16 Twin Insulated Pipe
• 1 x 10L Solaris DTX Glycol
• 1 x Discharge Container
• 1 x 8L Expansion Vessel
• 1 x Vessel Bracket
• 6 x Brass Solar Fittings

Data Sheet CE-STXKIT10: Please Click Here to download the product data sheet.

Downloads: Please Click Here to view our downloads section
